- Protection Structure Design & Coverage
Expansion -
|
|
|
I. The Goal of HPC |
• Visually identify patentable subject matters for protecting products and
business.
• Visually analyze legal coverage built by the patent portfolio.
• Help for easy decision-makings on creating and evaluating inventions, designing
foreign patent portfolios, responding to OAs’, etc.
|
|
II. Underlying Concept: The Market Evolution
|
• Market is evolving: Changes in consumers’ tastes seem to be abrupt in
timing and discontinuous in direction, like biological evolutions in nature.
• Market evolution shows a pattern: Performance/reliability - Convenience -
Diversification(Manufacturing Flexibility) - Costs(Manufacturing Efficiency)
(Clayton M.
Christensen, 1997, THE INNOVATOR'S DILEMMA: When New Technologies Cause Great
Firms to Fail, Harvard Business School Press).
• Catch up with the market evolution: Using a Patent Field Matrix and its
dedicated S/W, a powerful patent portfolio can be built which is able to catch up with
the market evolution.
|
|
III. The Process of HPC |
1. Patenting Field Topography:
|
• Market Evolution Research: The evolution characteristics of your market is
analyzed by researching changes in market requirments in time. Marketers, sales people,
engineers may be interviewed, and product bench markings may be performed.
• Value Chain Extraction: Product value chain is important in understanding
technical components of your product and movement of value in your business. Engineer
interviews, claims normalization and hierarchical grouping, etc. may be performed.
|
2. Portfolio Structure Analysis:
|
• Patent Field Matrix: Visualize the protection coverage of your portfolio
by indicating claimed coverage of a patent portfolio on each of the cells in a
2-dimensional matrix.
• Claim Normalization: Claims of your patents are converted into a database
by carefully selected reference terms by our experienced patent attorneys and experts.
Now, the claim coverage can be processed by dedicated softwares.
|
3. Coverage Expansion Design:
|
• Feature Extraction and Evaluation: Extract product features not yet
realized but required in the future, and evaluate their impact on the business.
• Saturation Point Evaluation: Evaluate a level of a product feature at
which no further improvements can generate meaningful customers’ attention.
• Patent Tracing, Mining and Development: Systematic and planned patent
creation and development.
|
|
IV. Examples of Patent Field Matrix
|

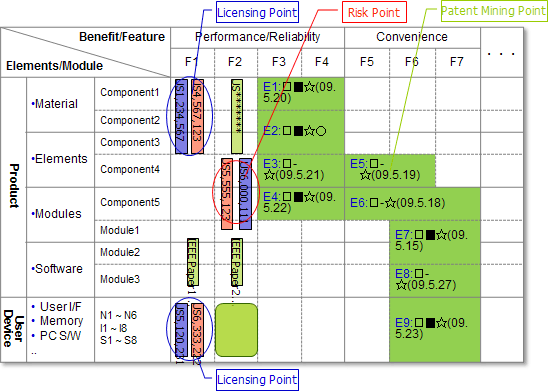

◊ Concept of Patent Field Matrix |
|
|

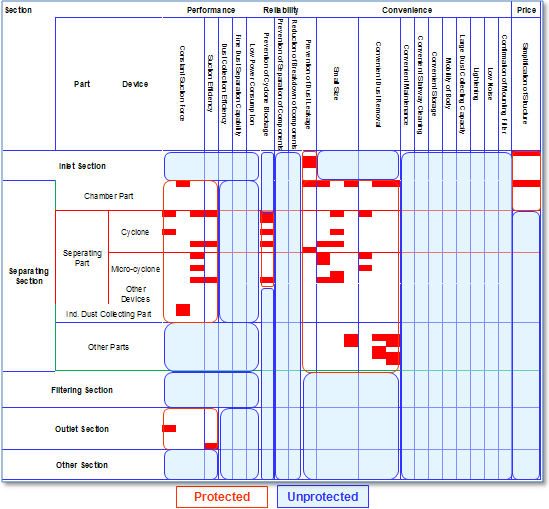

◊ Real Example of automatically generated PF Matrix by dedicated S/W
|
|
|
|
|
|
